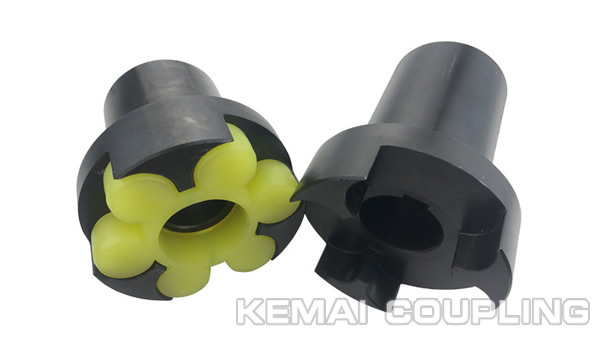

ML jaw coupling is a flexible shaft coupling. Model have ML1,ML2,ML3,ML4,ML5,ML6,ML7,ML8,ML9,ML10,ML11,ML12,ML13.

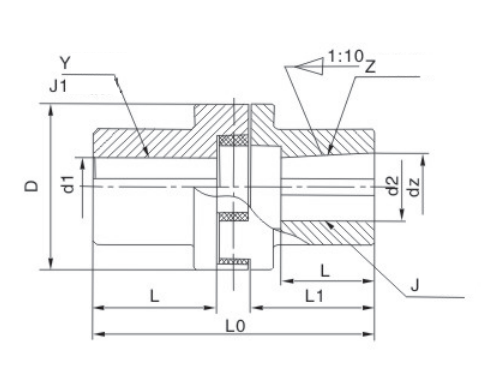

ML Jaw Coupling Size
| Model | TN (N.m) | Max speed (r/min) | Hole Dia. (mm) | Total lenght L0 Max(mm) | D (mm) | Weight (KG) |
| ML1 | 25 | 15300 | 12-24 | 80-120 | 50 | 0.66 |
| ML2 | 100 | 10900 | 20-32 | 127-187 | 70 | 1.55 |
| ML3 | 140 | 9000 | 22-38 | 128-188 | 85 | 2.5 |
| ML4 | 250 | 7300 | 25-42 | 151-257 | 105 | 4.3 |
| ML5 | 400 | 6100 | 30-48 | 197-257 | 125 | 6.2 |
| ML6 | 630 | 5300 | 30-55 | 203-263 | 145 | 8.6 |
| ML7 | 1120 | 4500 | 45-65 | 265-325 | 170 | 14 |
| ML8 | 1800 | 3800 | 50-75 | 272-332 | 200 | 25.7 |
| ML9 | 2800 | 3300 | 60-95 | 334-394 | 230 | 41 |
| ML10 | 4500 | 2900 | 70-110 | 344-484 | 260 | 59 |
| ML11 | 6300 | 2500 | 80-120 | 411-491 | 300 | 87 |
| ML12 | 11200 | 2100 | 90-130 | 417-577 | 360 | 140 |
| ML13 | 12500 | 1900 | 100-160 | 497-577 | 400 | 160 |
