YCB Gear pump use arc gear, Low noise, high efficiency, pressure 6bar,10bar,16bar,25bar. The material is cast iron or stainless steel.

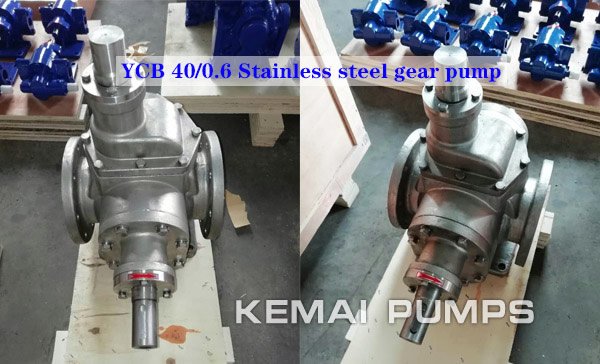

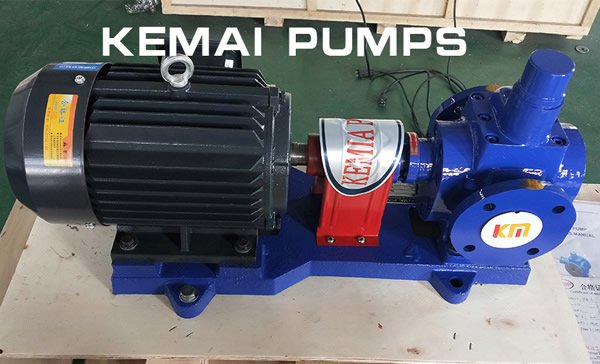

pump with motor Only pump (bare shaft pump)
I: YCB arc gear pump purpose:
YCB circular arc gear pump is suitable for conveying lubricating oil or other liquids with similar properties without solid particles and fibers, non-corrosive, temperature not higher than 180℃, viscosity of 5×10-6 ~ 1.5×10-3m2/s (5-1500cst).

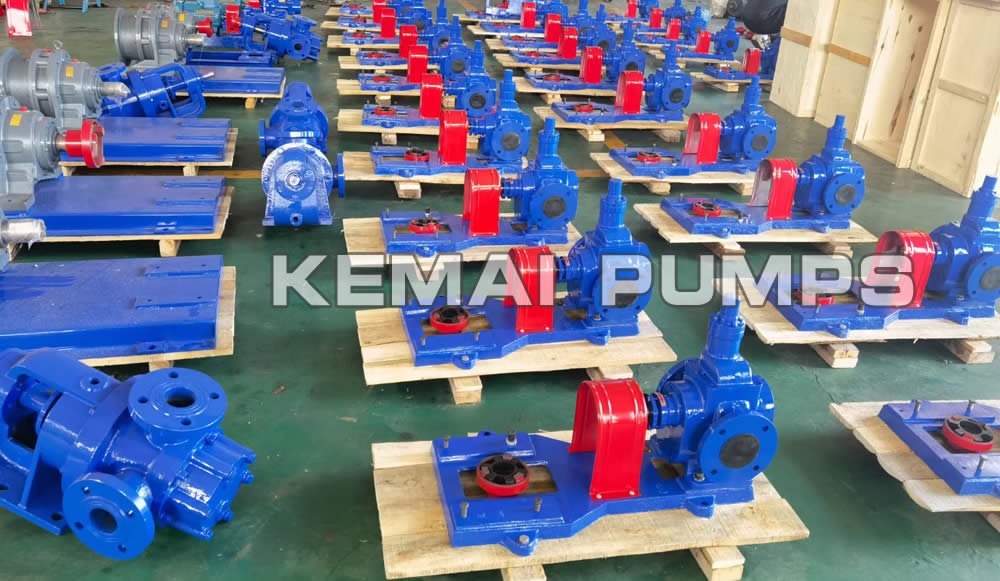

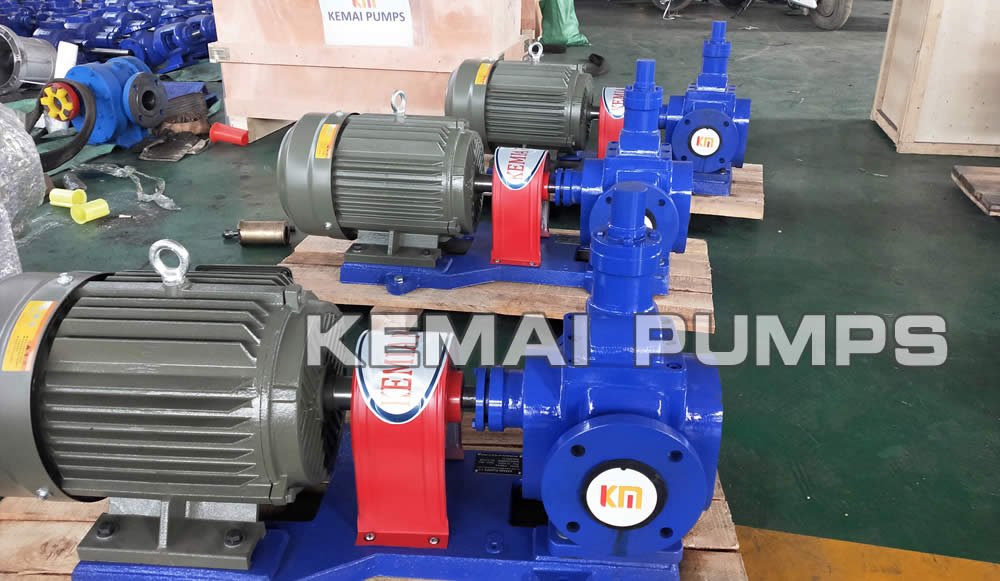

YCB Gear Pump YCB Gear Pump Manufacturer In China
II: YCB circular arc gear pump application range
In the oil transmission system can be used as transmission, booster pump;
In the fuel system, it can be used as a fuel pump for conveying, pressurizing and spraying.
In the hydraulic transmission system can be used as a hydraulic pump to provide hydraulic power;
In the industrial field, can be used as lubricating oil pump;
III: YCB gear pump structural characteristics
YCB circular arc gear pump is equipped with a relief valve as overload protection, the total backflow pressure of the relief valve is 1.5 times of the rated discharge pressure of the pump, and can also be adjusted according to the actual need within the allowable discharge pressure range.
But note that the relief valve can not be used for long-term work of the pressure reducing valve, when necessary, it can be installed on the pipeline.
Arc gear pump model:
| Model | Flow (m3/h) | Flow (L/min) | Outlet pressure (MPa) | Speed | Motor power (KW) | Motor model |
| YCB0.6/0.6 YCB0.6/1.6 | 0.6 | 10 | 0.6 1.6 | 910 910 | 0.75 1.1 | Y90S-6 Y90L-6 |
| YCB1.0/0.6 YCB1.0/1.6 | 1.0 | 1.67 | 0.6 1.6 | 1390 1400 | 0.75 1.5 | Y80L2-4 Y90L-4 |
| YCB1.6/0.6 YCB1.6/1.6 | 1.6 | 26.7 | 0.6 1.6 | 910 940 | 0.75 2.2 | Y90S-6 Y112M-6 |
| YCB2.5/0.6 YCB2.5/1.6 | 2.5 | 42 | 0.6 1.6 | 1400 1440 | 1.1 4 | Y90S-4 Y112M-4 |
| YCB3.3/0.6 YCB3.3/1.6 | 3.3 | 55 | 0.6 1.6 | 940 960 | 1.5 5.5 | Y100L-6 Y132L-6 |
| YCB4/0.6 YCB4/1.6 | 4 | 66 | 0.6 1.6 | 940 960 | 1.5 5.5 | Y100L-6 Y132L-6 |
| YCB5/0.6 YCB5/1.6 | 5 | 83.3 | 0.6 1.6 | 1420 1440 | 2.2 7.5 | Y100L-4 Y132L-4 |
| YCB6/0.6 YCB6/1.6 | 6 | 100 | 0.6 1.6 | 1420 1440 | 2.2 7.5 | Y100L-4 Y132L-4 |
| YCB8/0.6 YCB8/1.6 | 8 | 133 | 0.6 1.6 | 960 970 | 3 11 | Y132S-6 Y160L-6 |
| YCB10/0.6 YCB10/1.6 | 10 | 167 | 0.6 1.6 | 960 970 | 4 11 | Y132M-6 Y160L-6 |
| YCB12/0.6 YCB12/1.6 | 12 | 200 | 0.6 1.6 | 1440 1460 | 5.5 15 | Y132S-4 Y160L-4 |
| YCB15/0.6 YCB15/1.6 | 15 | 250 | 0.6 1.6 | 1440 1470 | 5.5 15 | Y132S-4 Y160L-4 |
| YCB20/0.6 YCB20/1.6 | 20 | 333 | 0.6 1.6 | 970 980 | 7.5 22 | Y160M-6 Y200L2-6 |
| YCB25/0.6 YCB25/1.6 | 25 | 420 | 0.6 1.6 | 970 980 | 11 30 | Y160L-6 Y225M-6 |
| YCB30/0.6 YCB30/1.6 | 30 | 500 | 0.6 1.6 | 970 980 | 11 37 | Y160L-6 Y250M-6 |
| YCB40/0.6 YCB40/1.6 | 40 | 660 | 0.6 1.6 | 980 980 | 15 45 | Y180L-6 Y280S-6 |
